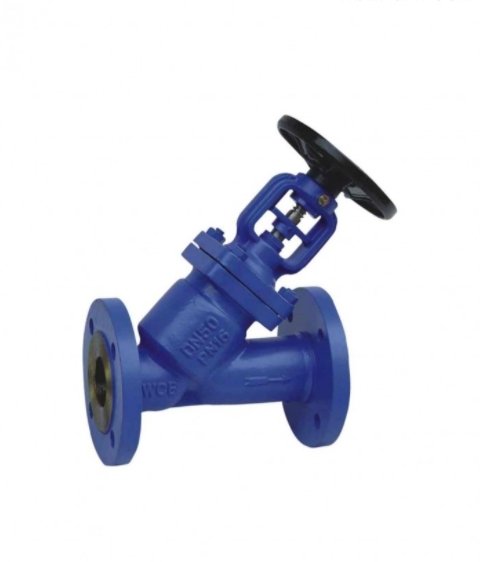

Valve-Y Type bellow seal Globe Valve

Design Standard:

The Y Type bellows Globe Valve is designed and manufactured in

accordance with the international standard API 602 and ASME B16.34.

It is suitable for various working conditions such as high

temperature, high pressure, and corrosive media.

Advantages:

1. The Y Type Corrugated Tube Globe Valve has excellent sealing

performance, which can effectively prevent leakage and ensure

the safety of the system.

2. The valve has a compact structure and small size, which saves

installation space and reduces the cost of the pipeline system.

3. The use of corrugated tubes can effectively absorb the deformation

caused by thermal expansion and contraction, which can prolong

the service life of the valve and reduce maintenance costs.

4. The valve stem adopts a self-sealing structure, which can effectively

prevent the leakage of the valve stem and ensure the safety of the system.

Application Fields:

The Y Type Corrugated Tube Globe Valve is widely used in petroleum,

chemical, metallurgy, power, pharmaceutical, and other industries.

It is suitable for regulating and controlling the flow of various media

such as water, steam, oil, gas, and corrosive media.

Structural Dimensions:

The valve body is made of high-quality carbon steel, stainless steel,

or other materials according to the working conditions. The valve

seat and disc are made of hard alloy or other materials with excellent

wear resistance. The valve size ranges from 1/2 inch to 8 inches, and

the pressure rating ranges from Class 150 to Class 2500. The valve end

connection can be flanged, welded, or threaded according to customer requirements.
